Cyclonic V-twin engine is smooth running and powerful

The 22-hp (16.4-kW) V-twin engine used in the S220 Tractor provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions:

• V-twin cylinder design for greater torque, lower vibration, and improved sound quality
• Large, 44.2-cu in. (724-cc) displacement
  • Plenty of torque helps to get the job done fast.
  • Large displacement engine increases the ability to get an even cut without mowing a second time.
  • Camshaft and carburetor designs create the optimum torque rise for rapid response to varying load conditions.
• Electronic ignition for fast starts
• Cast-iron sleeves for longer engine life
• Overhead valves for excellent power and fuel economy
• Full-pressure lubrication and oil filter for keeping the oil cleaner for a long engine life and extending the time between oil changes; full-pressure lubrication is also more effective when operating the tractor on an incline
• Excellent serviceability with easily replaced air filter, fuel filter, and oil filter and a convenient oil-drain hose to make draining the oil easy and clean
• Cyclonic design ejects large dirt particles before they contact the filter.
• Large, high-quality dry-type paper element air filter thoroughly cleans engine intake air.
• The cover over the air filter is easily removed with two knobs for cleaning or replacement of the filter.
• 14-amp charging capacity
• Regulated to keep the battery at full charge without risk of overcharging
• The capacity is 2.4 U.S. gal. (9.1 L).
• The fuel filler opening is conveniently located under the seat.
  • Filling the tank without spilling is easy.
  • A tethered fuel tank cap is more convenient.
  • The sealed fuel cap helps keep vapors inside the tank.

42-in. (107-cm) Accel Deep™ (42A) Mower Deck cuts clean and is versatile

The 42-in. (107-cm) Accel Deep Mower Deck is a stamped-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

• 4.97-in. (12.6-cm) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance
  • Optional MulchControl™ system provides superior mulching performance and versatility
• Stamped-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
• Mower deck suspended from the vehicle for a smooth and level cut
  • Adjustable mower wheels, positioned just above ground level, help reduce scalping
• 0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height

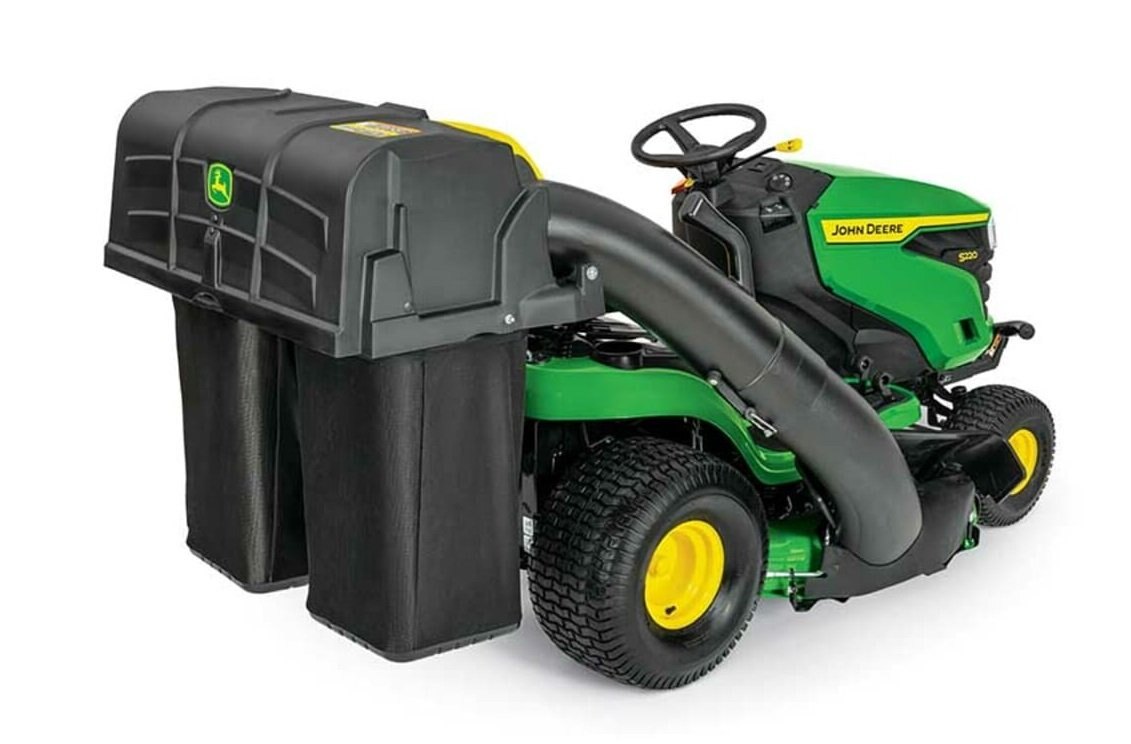

• Compatible with efficient 6.5-bu (229-L) two-bag material collection system
• Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
  • Helps maintain excellent cut quality at faster mowing speeds
• Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
• Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.

PRODUCTIVITY - GETS THE JOB DONE FAST

Deep mower-deck stamping gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

• Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds

Large discharge opening is both high and wide to handle more material:

• Gives a smooth, even discharge of clippings at all mowing speeds
• Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging
• Cut-and-throw chute has a large, optimized inlet which aids in collecting material by using airflow from the large deck opening
• There are few places to catch and hold material on top and underneath the deck.
  • Top of deck stays cleaner, reducing time and effort needed for cleaning and service
  • Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
  • Less need to clean and remove buildup of material from underside deck
• The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck
  • Limited amount of material to drift onto the operator and mower deck
  • Even flow of material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
  • Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.

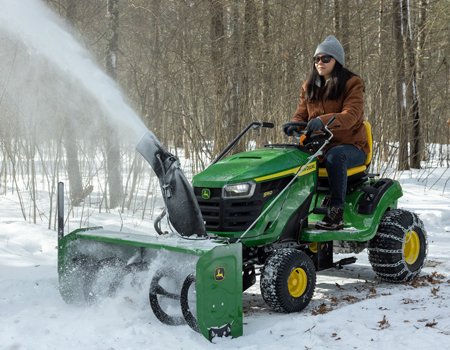

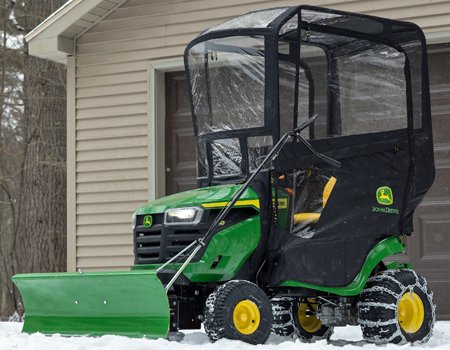

Snow removal is a strength of lawn tractors

An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.
Equipment available for snow removal includes:

• 44-in. (112-cm) Snow Blower
• 46-in. (117-cm) Front Blade
• Tire chains or TerraGrip traction belts
• Weather enclosure
• Weights

MulchControl™ system provides superior mulching performance and rapid conversion

The optional MulchControl system makes mulching more practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

• Creates a beautiful looking lawn
• Smaller grass clippings disappear into the lawn canopy
• Reduces fertilizer needs
• Grass clippings are not blown onto the operator, driveways, or flower beds
• No need to dispose of bags of clippings
• The MulchControl system includes an adjustable MulchControl baffle near the discharge chute and fixed baffles to control the flow of material under the deck.

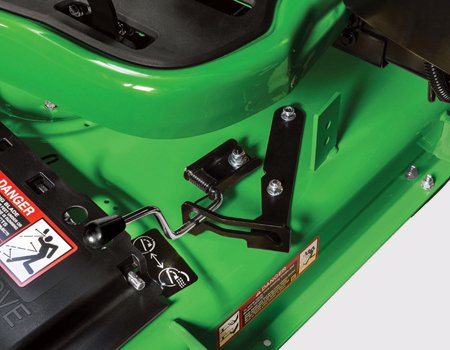

• The MulchControl handle is on top of the mower deck and is used to open and close the MulchControl baffle.
• When the MulchControl baffle is open, most of the material flows freely out the discharge deflector or into a material collection system.
• When the MulchControl baffle is closed, material stays within the deck and gets chopped into mulch and deposited in the turf.

MulchControl is well-suited to the following mowing situations:

• For operators who usually mulch, but side discharge when grass gets too long
• For operators who usually side discharge, but would like to close the chute to control clippings in some areas
• For operators who always mulch a main lawn, but often side discharge secondary lawns
• For operators who collect clippings but want to go farther before emptying the material collection system

MulchControl puts the operator in control of the clippings.

MULCHCONTROL LIMITATIONS

While in the side-discharge mode, MulchControl still mulches about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

• When cutting strong southern grasses, such as Zoysia and Bermuda
• When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
• When optimum bagging and lawn cleanup is desired

Hydrostatic transmission gives an infinite choice of ground speeds

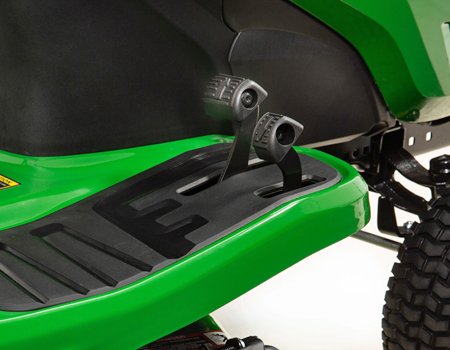

A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:

• Automotive-type accelerator controls ensure easy operation.
• Operator can change direction without lifting foot off the platform.
• Large pedal surface gives superior operator comfort.

Hydrostatic transmission

Appropriate transmissions are used in each tractor model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:

• Tuff Torq TLT200 – S220

• Tuff Torq K46 – S240

Operator station designed for comfortable operation

The operator station is designed for operator comfort and easy operation:

• Controls are positioned where they are easy to reach and easy to use to control the tractor.
• Steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
• Seat is positioned to provide the most comfortable operator position.
• Large, three-spoke steering wheel for greater operator comfort and control
• Ignition switch is on the dash for starting ease

Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort:

• The wide footrest makes it easier to step over the mower deck while entering or exiting the seat.
• Debris-removing channels help keep the footrest area clean and dry.

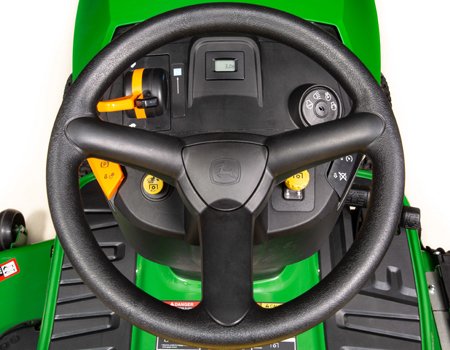

Instruments and controls are easy to find and convenient to use

The contoured dash has clean, attractive styling:

• Controls are color coded and labeled for easy identification by the operator.
• Controls are logically placed and easy to reach.
• The hour meter makes it easy to tell when oil changes and other maintenance should be performed.
• The ignition switch is on the dash for starting ease.
• Functional design of the controls provides good appearance and a comfortable feel.

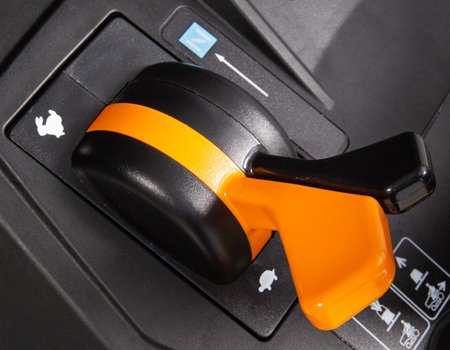

• The engine speed lever is easy to use.
• The choke lever is spring loaded so the operator cannot accidentally operate the tractor with the choke on.

The 42-in. (107-cm) mower deck is engaged with the easy-to-see and easy-to-use yellow lever above the dashboard:

• Placement on the right side leaves a lot of room on the left, the entry side of the tractor, for the operator to get on and off the tractor
• Designed for low effort, easy use, and reliable performance

The 48-in. (122-cm) mower deck is engaged with an easy-to-use electric PTO switch:

• The electric switch requires only a short movement.
• With an electric PTO clutch, the mower drive belt stays under tension at all times for improved reliability compared to manual PTO engagement systems.

Three-year or 200-hour bumper-to-bumper warranty is standard

An exclusive 3-year or 200-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere 200 Series Tractors.

• The warranty is hassle free, with both the mower and the engine covered by a single warranty.
• If the mower is sold, the remaining warranty term is transferable to a new owner.
• Premium features of 200 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.
